Sealed Universal PTO Switch Lawn Mower Tractors Power Take Off Switch

Certification : ISO9001, CCC, VDE, CQC,RoHS,Reach

Price : Negotiable

Brand Name : YESWITCH

Model Number : Take-Off Switch

Place of Origin : China

Payment Terms : T/T

Model NO. : Take-Off Switch

Wiring : Solder Terminal

Application : Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home

Number of Switch : Multi Control Switch

Structure : Power Built-in Type

Usage : Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch

Kind : Double-pole on-off Switch

Detection Method : Reflection Type

Cycle Life : Resistive:100,000,Inductive:40,000

Operating Voltage Range : 9-96 VDC

Operating Current : 10mA-10A@ 9-16VDC,10mA-500mA@ 48

Contact Resistance : 50mohms Max, New at 10mA,12 VDC

Ingress Protection : IP67, with Sealed Mating Connect

Operating Temperature Range : -40~85 Degree

Humidity : 95% Relative Humidity,Non-Condensing

Specification : CE, ROHS, SGS, CQC

Protection : Durable, Explosion-Proof, Waterproof, Dust-Proof

Feature : Flat

Contact Now

Sealed Universal Power Take-off Switch For Lawn Mower Tractor
Description

YESWITCH Sealed Universal Power Take-Off switch for the outdoor power equipment market, designed to help provide a dependable and safe experience for ride-on mower operators.

The sealed push/pull switch offers reliability and ensures longer part life when compared with non-sealed parts. Protected from the elements, the Sealed Power Take-Off (PTO) switch keeps out grass, dirt, water, oil and other contaminants that reduce switch life. With an IP67 rating, this power take-off automotive switches are dust-tight and protects against water ingress.

The PTO waterproof push button switch is a critical safety device developed to prevent unintentional blade actuation of lawn equipment. This automotive push button switches are part of a series of controls that comprise a mower's safety interlock system, requiring riders to use proper procedure when operating machinery.

The YESWITCH Sealed Universal PTO switch is not only applicable to mowing equipment, but can also be used in light agricultural machinery, construction equipment and material-handling units.

The Sealed Universal PTO switch is expertly engineered and features:

A rugged, compact housing that is highly resistant to shock and vibration
Universal application from 10mA to 10Amps
A push/pull design that protects against inadvertent actuation
User-friendly and ergonomic styling
Full autonomy, with no need for a controller
Specification:
SPECIFICATION
Cycle Life: Resistive:100,000,Inductive:40,000
Operating Voltage Range: 9-96 VDC
Operating Current: 10mA-10A@ 9-16VDC,
10mA-500mA@ 48-96 VDC
Contact Resistance: 50mOhms max, New at 10mA,12 VDC
Ingress Protection: IP67, with sealed mating connector
Operating Temperature Range: -40~85 Degree
Humidity: 95% Relative Humidity,non-condensing

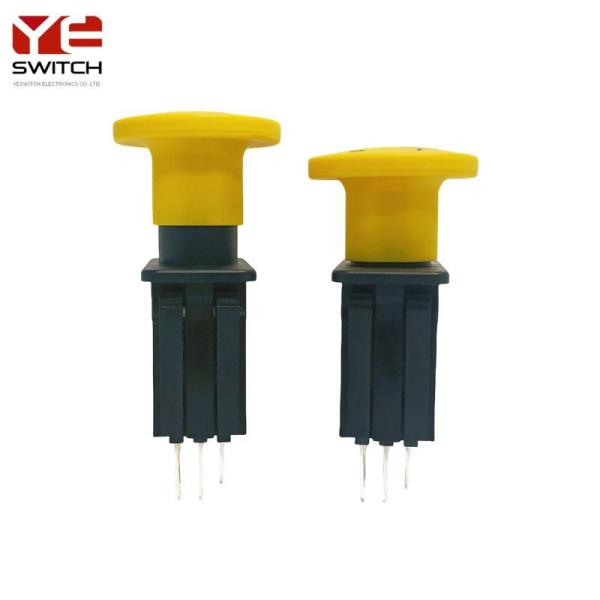

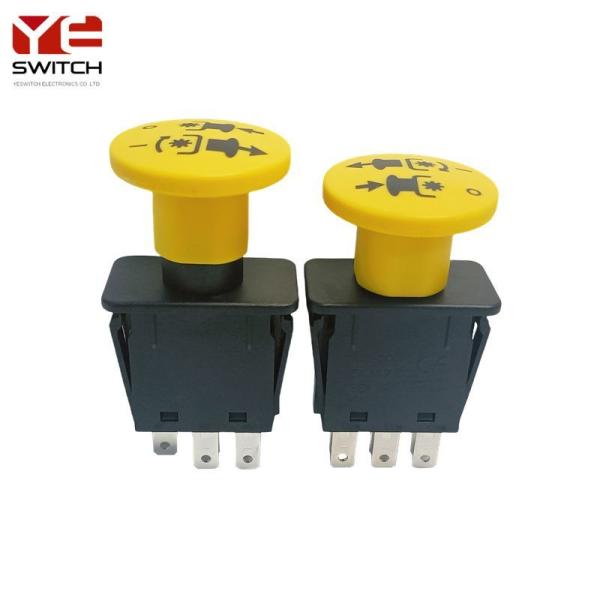

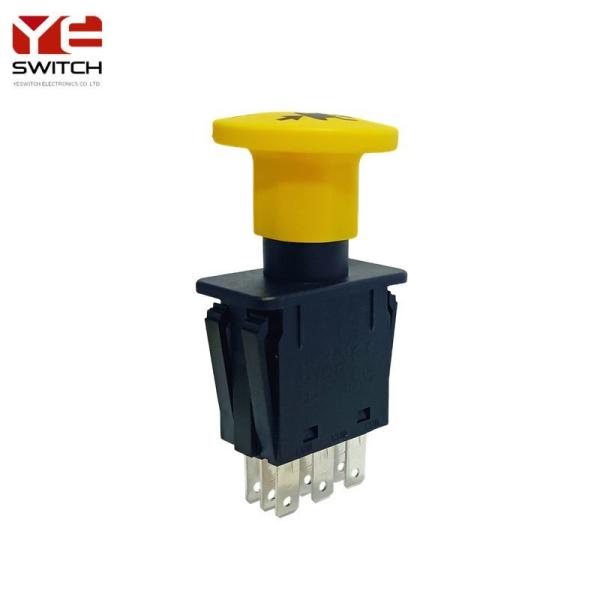

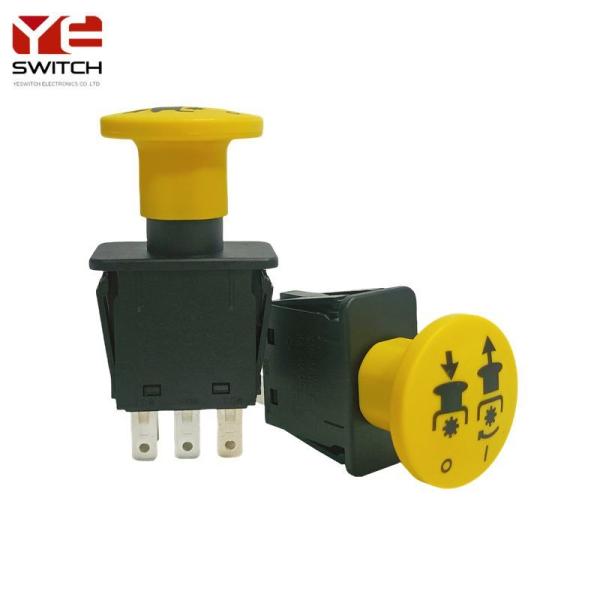

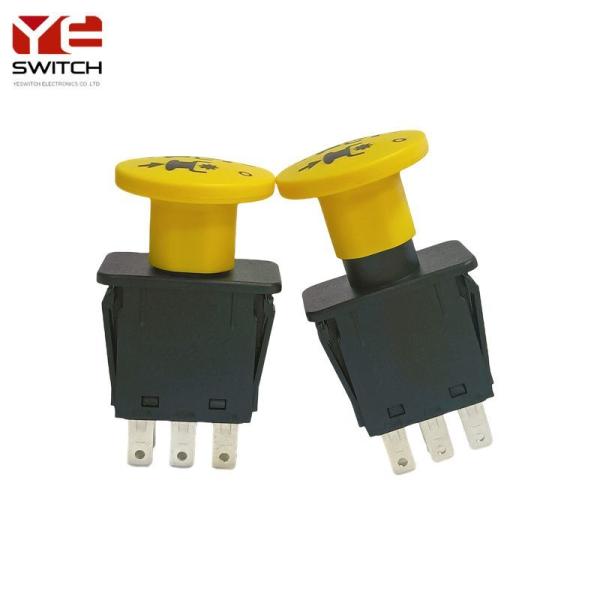

Detailed Photos

Sealed Universal PTO Switch Lawn Mower Tractors Power Take Off SwitchSealed Universal PTO Switch Lawn Mower Tractors Power Take Off SwitchSealed Universal PTO Switch Lawn Mower Tractors Power Take Off SwitchSealed Universal PTO Switch Lawn Mower Tractors Power Take Off SwitchSealed Universal PTO Switch Lawn Mower Tractors Power Take Off SwitchSealed Universal PTO Switch Lawn Mower Tractors Power Take Off SwitchSealed Universal PTO Switch Lawn Mower Tractors Power Take Off Switch
