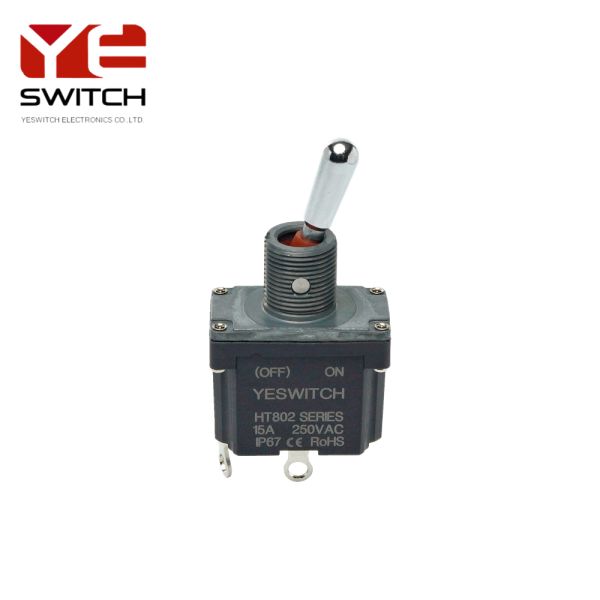

Waterproof And Dustproof Industrial Metal Toggle Switch For Heavy Duty Machine
Engineered for unwavering performance in the most demanding industrial settings, our heavy-duty industrial metal toggle switch is the definitive solution for controlling high-power machinery, robust equipment, and critical systems. Constructed with a superior-grade metal housing and a robust internal mechanism, this switch is designed to endure where standard components fail.
The switch boasts an exceptional IP67 rating, guaranteeing complete protection against dust ingress and allowing it to withstand immersion in water up to 1 meter for 30 minutes. This makes it impervious to oil, coolant, moisture, and airborne particulate matter, ensuring reliable operation in harsh environments like manufacturing plants, agricultural machinery, construction sites, and marine applications.
Precision-engineered for heavy-duty electrical loads, it confidently handles high-amperage circuits, typically ranging from 15A at 125/250V AC, making it suitable for directly powering motors, pumps, compressors, and high-wattage lighting. The high-quality silver-alloy contacts ensure minimal voltage drop, reduce arcing, and provide a stable, low-resistance connection for long-term electrical efficiency.
Operational reliability is paramount. The toggle features a positive, crisp actuation with a clear tactile feedback and an audible click, confirming operation even in low-visibility conditions or while wearing gloves. The sturdy metal lever is ergonomically designed for easy use and can be fitted with a boot or cover for added protection and switch position indication.
For secure integration, the switch features a standard nut-and-bushing mounting system, providing a vibration-proof and tamper-resistant installation. Its universal design ensures easy replacement and compatibility with existing panels.
Key Features:
Rugged Metal Housing: Maximum physical durability and impact resistance.
IP68 Sealed Design: Fully waterproof and dustproof for harsh conditions.
High-Current Rating: Engineered for heavy-duty industrial electrical loads.
Secure Panel Mount: Vibration-resistant installation.
Positive Tactile & Audible Operation: Ensures clear confirmation of switching.
FAQ
Q1: When can I get the quotation ?
A: We are online all day, so you can get quotation within 24h.
Q2: When can I get the samples?
A: It depends on the express, generally 3-10 days.
Q3: Can you accept small order?
A: Yes, we will try our best to help you with your business.
Q4: What's the lead time of mass production?
A: Generally 2-4weeks. We will inform you the delivery time after receiving your payment.
| SPECIFICATION |
| CONTACT RESISTANCE: | 20m ohm(Max) |
| INSULATION RESISTANCE: | 100VDC-100M ohm(Min) |
| DIELECTRIC STRENGTH: | 1500VAC-1MINUTE |
| MECHANICAL LIFE CYCLE: | 100.000 CYCLES |
| OPERATING TEMPERATURE: | -40 to +85 DEGREES |
| FRONT SEAL: | IP68 |
| RATING |
| RESISTIVE LOAD: | 16A 125/250VAC,15A 28VDC |
| INDUCTIVE LOAD: | 15A 28VDC |
| MATERIAL |
| ACTUATOR: | COPPER ALLOY |
| HOUSING: | NYLON (UL94V-0) |
| BUSHING: | ZINC ALLOY |
| TERMINAL: | COPPER ALLOY |
| CONTACT: | COPPER ALLOY |
| O-RING: | SILICONE RUBBER |
| SHEEL: | STAINLESS STELL |
